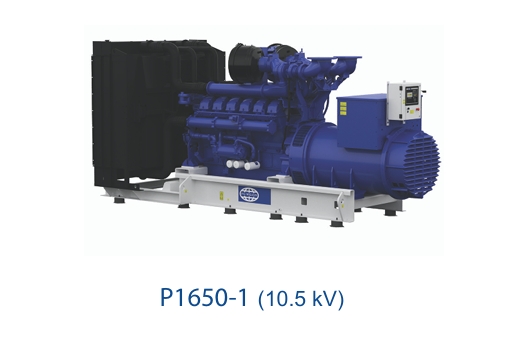

P1650-1 (10.5 kV)

简介—— Ratings at 0.8 power factor. Please refer to the output ratings technical data section for specific generator set outpu…

  • 10kv高压发电机机组
联系电话:

详情内容/ Content details

手机扫一扫

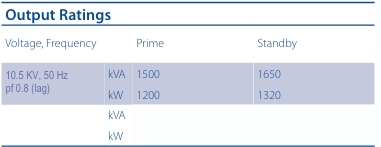

Ratings at 0.8 power factor.

Please refer to the output ratings technical data section for specific

generator set outputs per voltage.

Prime Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no

limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standby Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is

permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).

Standard Reference Conditions

Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity.

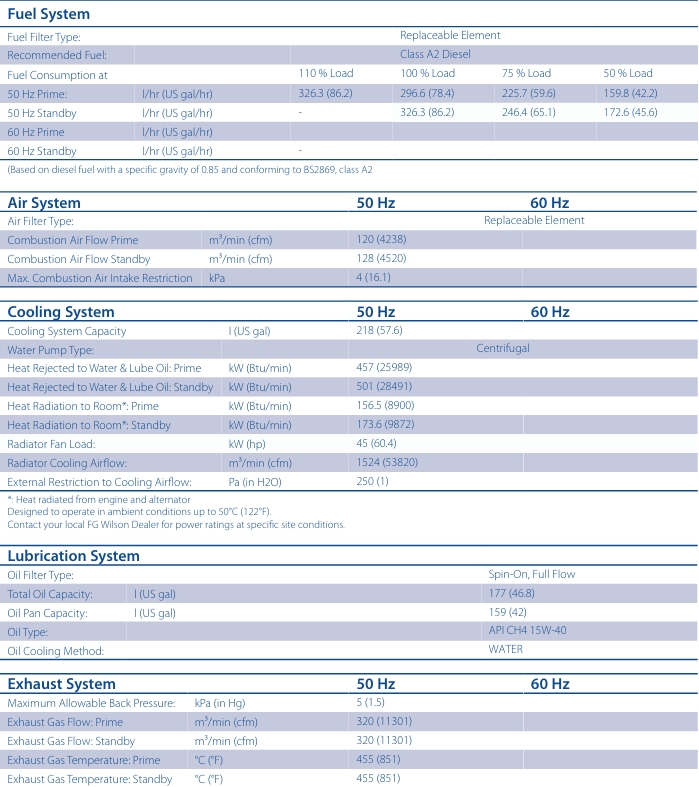

Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

FG Wilson offer a range of optional features to allow you to tailor our generator sets to meet your power needs.

Options available include:

• Upgrade to CE Certification

• A wide range of Sound Attenuated Enclosures

• A variety of generator set control and synchronising panels

• Additional alarms and shutdowns

• A selection of exhaust silencer noise levels

For further information on all of the standard and optional features accompanying this product please contact your local Dealer or visit:

Reactances shown are applicable to prime ratings.

*Based on 30% voltage dip at 0.4 power factor.

** With optional independant excitation system (PMG / AUX winding
